Jacquard Circular Knitting Machines | Link, Single & Double Jacquard

LINK JACQUARD

LINK JACQUARD Computer Electronic Jacquard Circular knitting machines

LINK JACQUARD Computer Electronic Jacquard Circular knitting machines equipped with advanced 3-way computerized needle selection and synchronized multi-yarn guides for complex relief and pattern knits.

1. Electronic System: Machine 3 way Chuangda Electronic jacquard computer system with microsecond actuator response.
2. Synchronized Feeder: Special Yarn guide possible for 3 yarn feeding at the same time.
3. Advanced CAD Telemetry: High-definition touchscreen monitor with USB pattern loading and automatic fault detection.

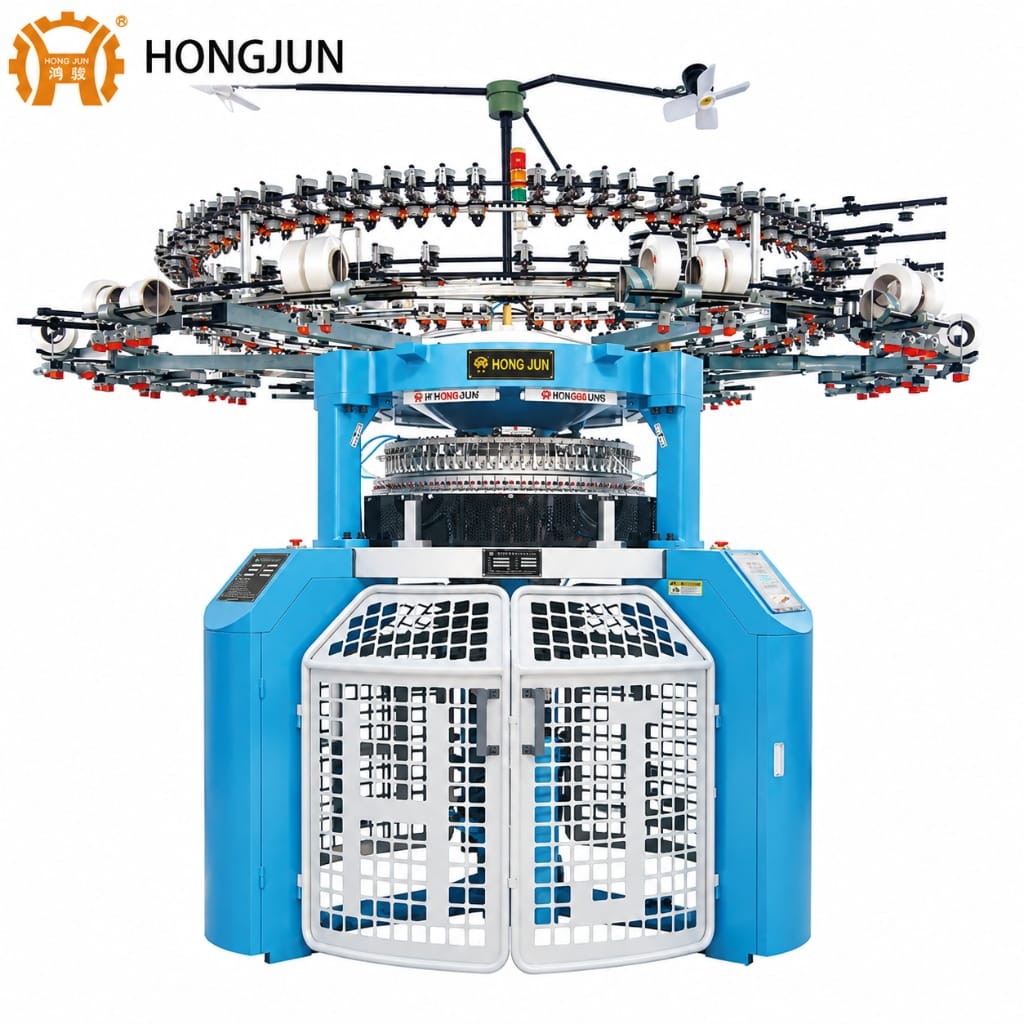

Single Jersey Electronic Jacquard Circular Knitting Machine

SINGLE JACQUARD

Single Jersey Electronic Computerized Jacquard Circular Machine

High-speed electronic jacquard system for high-resolution single jersey patterned knits, Lycra fashion activewear, and mattress ticking fabrics.

3-Way needle selection (knit, tuck, miss) on cylinder for boundless geometric pattern capabilities.
Ultra-responsive piezoelectric ceramic actuators with minimal heat generation.
Central stitch adjustment with micro-meter calibrations for rapid fabric density (GSM) tuning.

DOUBLE JACQUARD (MATTRESS TICKING)

Dual-Selection Dial & Cylinder Computerized Double Jersey Jacquard Machine

Engineered for high-end double face jacquards, multi-color relief patterns, heavy winter apparel knits, and quilted home textile fabrics.

Independent computerized selection on both cylinder and dial needle beds.
Reversible double-face cloth production with crisp pattern resolution on both sides.
Rigid industrial cast frame absorbs torsional stress during continuous high RPM operation.

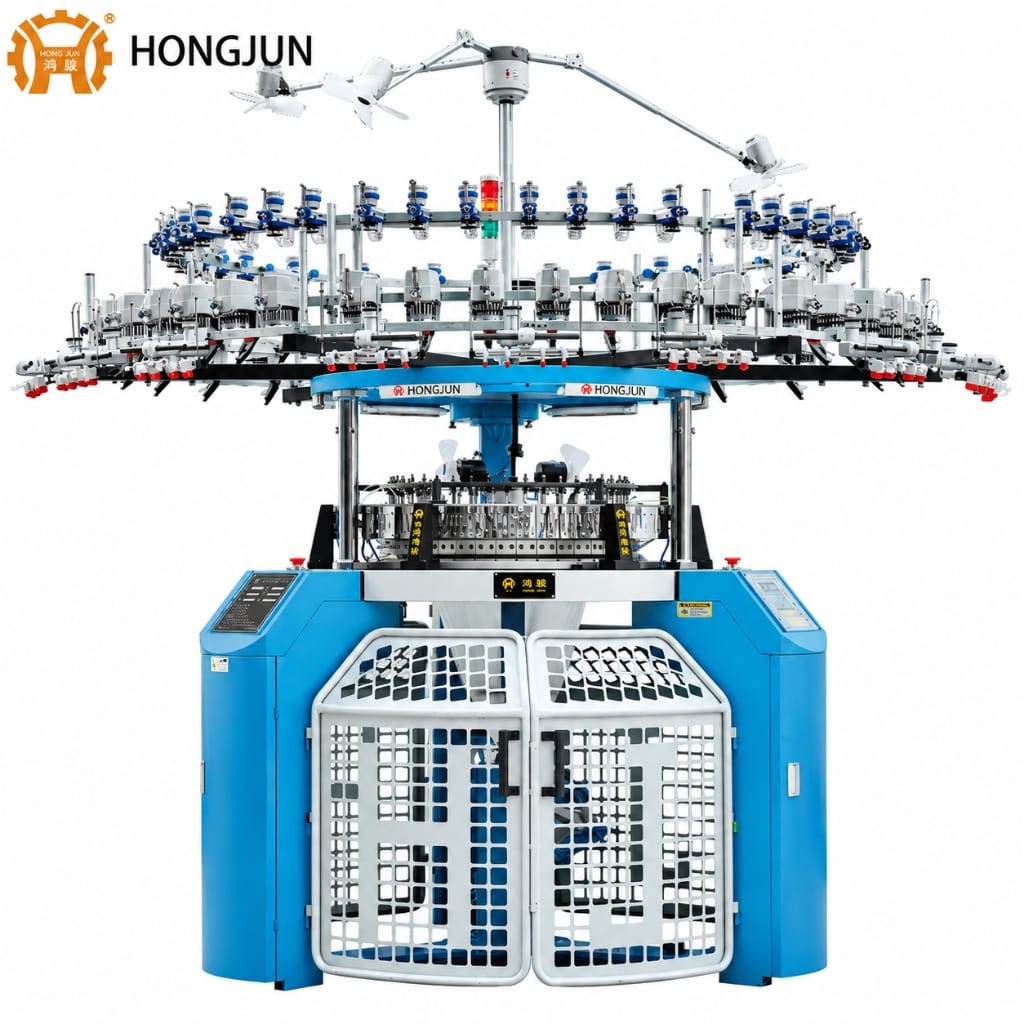

Single Terry Computer Electronic Jacquard Machine

SINGLE TERRY JACQUARD

Plush, Towel & Velvet Electronic Jacquard Circular Knitting Machine

Combines plush loop formation with computerized jacquard needle selection for sculpted velvet, embossed hotel bath towels, and patterned polar fleece.

Sculpted plush knits: Creates multi-height terry loops and flat jacquard zones in the same fabric.
Zero yarn shear with hardened high-wear sinker cams protecting delicate cotton and micro-yarns.
Central stitch adjustment dial and precision ball bearing system ensures energy savings.

DOUBLE JACQUARD RIB TRANSFER

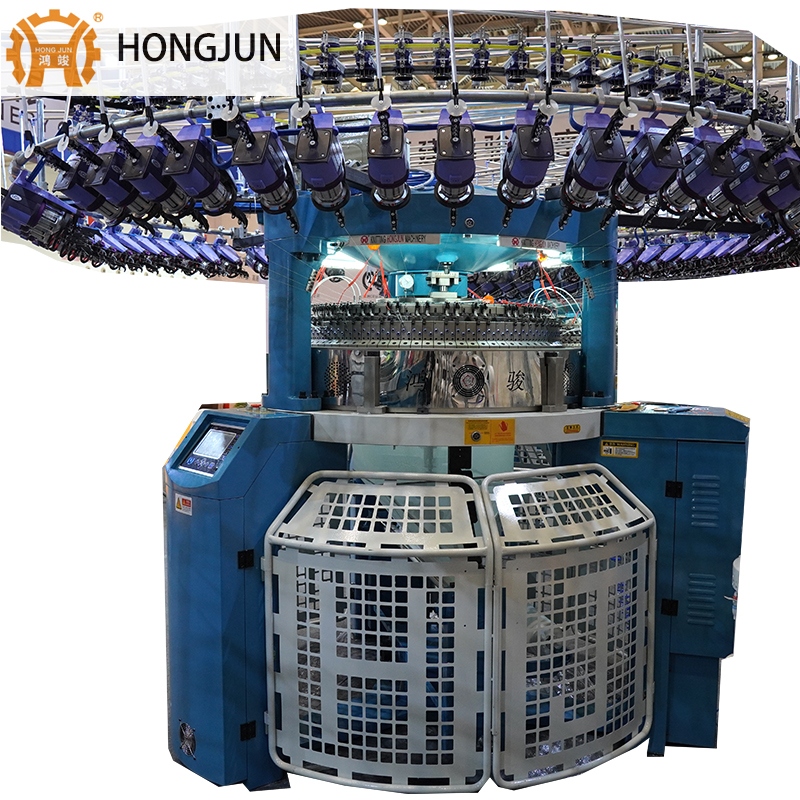

Double Jacquard Rib Transfer Circular Knitting Machine

High-precision circular knitting machine with computerized needle transfer capabilities between cylinder and dial for eyelet jacquard, pointelle, drop-stitch patterns, and open-work knitwear.

Chuangda 2 & 3-Way Jacquard System: Advanced electronic needle selection on dial and cylinder with microsecond response.
Automated Rib Transfer: High-precision transfer cams shift stitches between dial and cylinder without dropped stitches.
Groz-Beckert Needles & Sinkers: German high-precision knitting elements ensure flawless loop formation and long component life.
Industrial Components: Japanese S45CL alloy steel frame, Delta inverter, YONGTAI take-down, Uniwave teeth belt, and PULSONIC 6 oiler.

Jacquard Series Circular Knitting Machines

Jacquard Series Machinery

LINK JACQUARD

SINGLE JACQUARD

DOUBLE JACQUARD (MATTRESS TICKING)

SINGLE TERRY JACQUARD

DOUBLE JACQUARD RIB TRANSFER

Jacquard Series Circular Knitting Machines

Jacquard Series Machinery

LINK JACQUARD

SINGLE JACQUARD

DOUBLE JACQUARD (MATTRESS TICKING)

SINGLE TERRY JACQUARD

DOUBLE JACQUARD RIB TRANSFER

Request Jacquard Machine Quote
